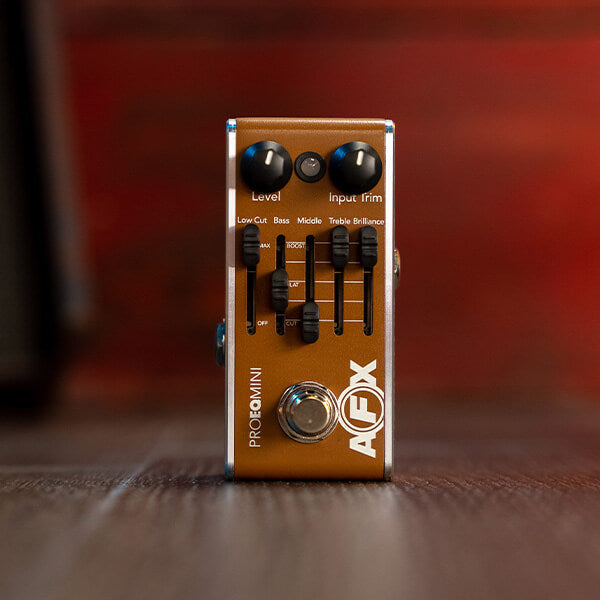

The Fishman AFX Pro EQ Mini delivers studio-quality acoustic tone shaping in a compact, pedalboard-friendly design. Based on the renowned Fishman Platinum Series preamps, it provides premium preamplification and precise four-band EQ control, voiced specifically for acoustic instruments.

Plug in and experience a high-impedance preamp that perfectly conditions your signal — whether from a passive or active pickup — for maximum clarity and warmth. The intuitive four-band EQ (Bass, Mid, Treble, and Brilliance) allows you to sculpt your tone with precision, while a sweepable Low Cut filter helps reduce unwanted low-end rumble or enhance body resonance as needed.

The phase inversion switch (activated by holding the footswitch) effectively tames low-frequency feedback, making this an ideal tool for both stage and studio use. Despite its small size, the AFX Pro EQ Mini packs professional-grade performance and Fishman’s trusted reliability.

Specifications:

• Model: PRO-AFX-EQ2

• Audio I/O: ¼″ TRS input & output (supports Dual Path functionality)

• Preamp: High-impedance input, tailored for acoustic pickups

• EQ: 4-band tone control (Bass, Mid, Treble, Brilliance)

• Low Cut Filter: Sweepable for fine low-end control

• Polarity Switch: Hold footswitch to invert phase and reduce feedback

• Bypass: True bypass with buffered bypass option

• Processing: 24-bit A/D & D/A conversion, 32-bit internal DSP

• Signal Specs:

  • Input Impedance: 10MΩ

  • Output Impedance: 1kΩ

  • S/N Ratio: -100dB

  • Dynamic Range: 100dB

• Construction: Durable aluminum enclosure

• Power: 9V DC, 53mA typical (center negative, adapter sold separately)

• Dimensions: 1.9" W × 3.8" D × 1.92" H (49mm × 97mm × 49mm)

Compact, powerful, and musical, the Fishman AFX Pro EQ Mini is your ultimate acoustic tone control — ensuring your instrument always sounds its best.
